SMART QUBIX CLIMATE SENSOR

  • Satellite unit Smart Qubix system
  • RS485 serial communication
  • Zigbee wireless communication
  • Sensors
    • Temperature
    • Humidity
    • Luminosity
    • Co2
    • Barometric pressure

Recommended Retail Price

Category:

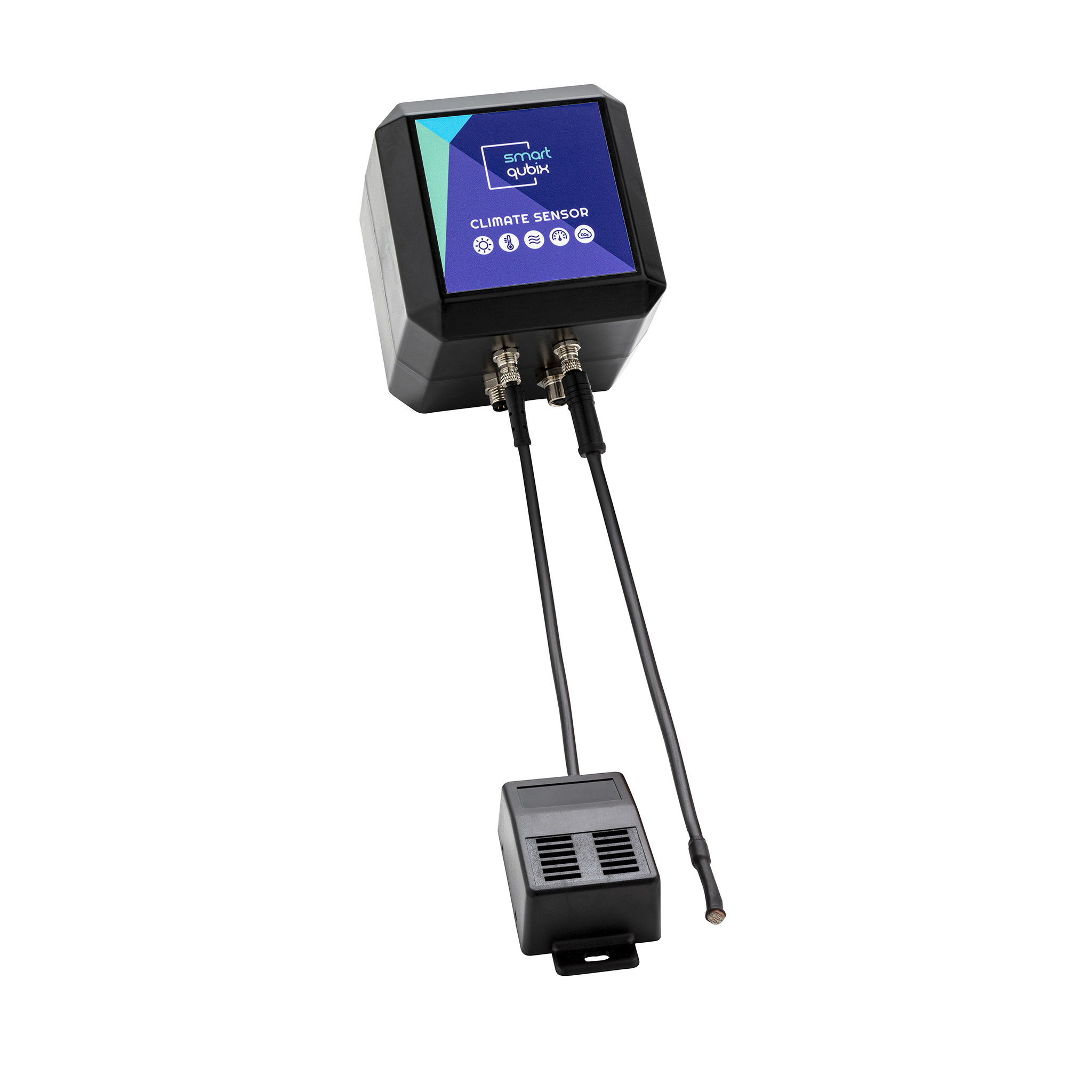

The Smart Qubix Climate Sensor is a satellite unit which can be wirelessly connected to the controller using the Zigbee Gateway and has the following sensors:

- Temperature
- Humidity
- Luminosity
- CO2
- Barometric pressure



CO2 SENSOR
Brand SenseAir
Operating Principle Non-dispersive infrared (NDIR)
Measurement range 0 to 5000 ppmvol
Accuracy ±30 ppm ±3% of reading
Response time (T1/e) 20 sec diffusion time
Rate of Measurement 0.5 Hz
Operating temperature 0 to +50 °C
Operating humidity 0 to 95% RH non condensed
Storage temperature -30 to +70 °C
